Green - Gas Blue - Liquid Orange - Mixed

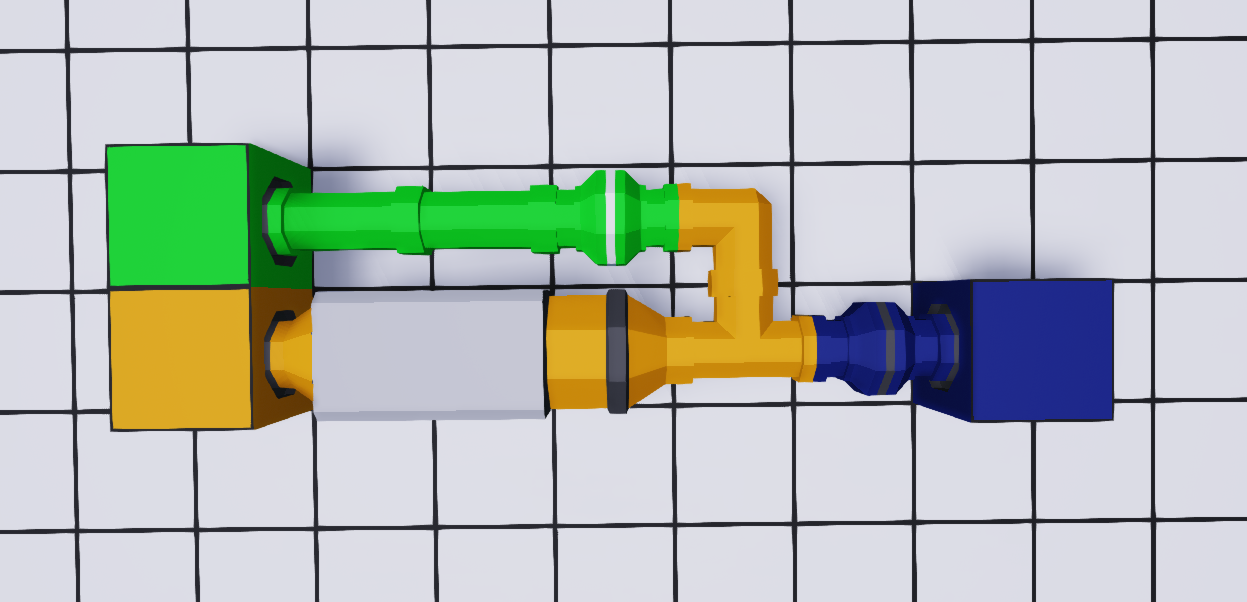

From Robert on the Discord: This device is called a liquid gas seperator, it keeps your pumps from getting rid of the air and makes sure they only throw out the water. The valve with a white band is a gas relief valve, that returns back to the tank you're draining from. The black banded valve is the liquid relief valve, that goes to wherever you're dumping your liquid.
